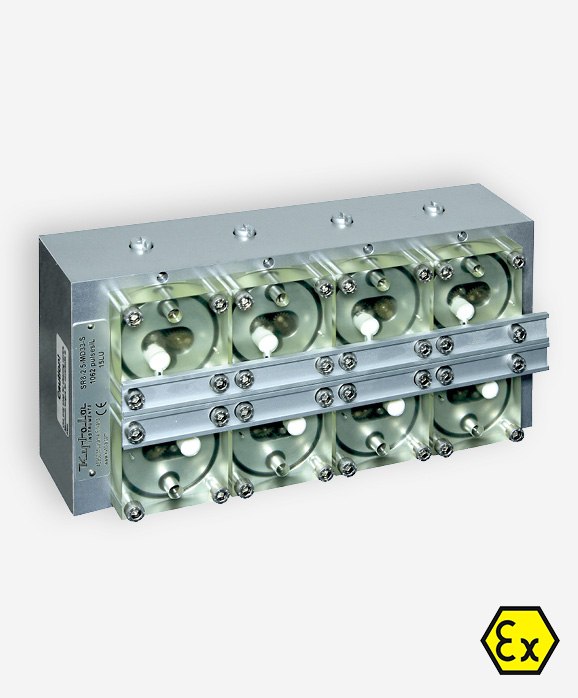

北京Kytola多通道齒輪流量計SRx

在線訂購

主要特點

? 4, 6 或 8點每組

? 較大的粘度范圍 30–1000 cSt

? 測量不受粘度變化影響

? 脈沖信號輸出

? 堅固的結構

? 流量調節閥門

? 服務閥門

? 最大壓力 10 bar

(20 bar 根據客戶需求)

? 最大溫度 80°C

應用

? 潤滑油測量

? 工業用油測量

? 流程控制

測量范圍

? 油

min 0.1 – 1 L/min,

max 0.6–6 L/min

? 其他范圍可選

表體

? 鋁

接口

? BSP 或 NPT 1/2”出口

Overview

The Kytola Oval Gear Meter Model SRx is a multi-channel model designed and developed for lubrication oil measurement in demanding industrial environments. These meters are compatible with and part of our complete oil lubrication systems package Oval Flow Monitoring System.

The model SRx oval gear meter is a positive displacement flow meter which always shows the correct flow rate regardless of oil temperature or viscosity changes. The flow meter consists of two elliptical gears which the flow rotates. A coil sensor or an inductive proximity sensor picks up the rotation. The pulse signal can be transferred to indicators, counters, or automation systems. The meter comes with flow adjustment valves.

Typical applications include lubrication oil measurement, industrial oil flow monitoring, and process control.

Technical data
Model (x = Number of measuring points = 4, 6 or 8)	SRx-1	SRx-3	SRx-6
Flow range	0.1 - 1.5 L/min	0.2 - 3 L/min	0.5- 6 L/min
Weight	SR4: 2.5 kg	SR6: 3.5 kg	SR8: 4.5 kg
Connections (G/NPT)	1/2"	1/2"	1/2"
Sensor	Kytola coil sensor (compatible with Kytola measuring stations) or NAMUR sensor; EN 60947
Max. pressure	10 bar (* 20 bar)
Max. temperature	+80oC
Viscosity range	30 - 1000 cSt
*) Special construction on request
