ACRK Series是高揚程多級離心泵，主要用于需要較高壓力的高精密、高功能機床，十分適合冷卻或清洗加工對象。
泵的主要部分使用不銹鋼制成，安裝有氟橡膠材質(FKM)機械密封(Mechanical-seal)，耐高溫及耐久性卓越。
ACRK Series比油箱或容器深時，可以使用空區調整浸水高度。(但空區數量越多越可能造成壓力降低。)
為了防止安裝泵時混入異物造成吸入降低，油箱的排出側和吸入側之間安裝隔板，應構成排出的流體不立即吸入的系統。
ACRK Series用于NC·CNC Lathe、Machining center、Grinding Machine等機床的冷卻裝置和產業用Washing Machine、Filtering系統等。

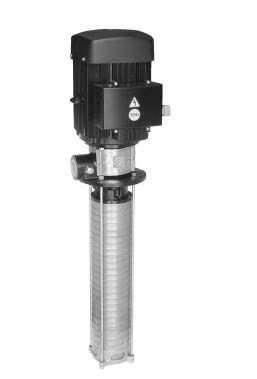

Aryung ACRK SERIES Coolant Pumps
ACRK series pump is used machine tool for high precision, performance to make the processing materials cool and wash out the sludges.
The major raw materials consist of stainless steel. the mechanical seal is made FKM that endure high temperature and keeps long-life performance.
ACRK series is high-pressure, multi-staged centrifugal pump. This pump is used machine and tools for high precision and performance to make cool the processing materials and wash out the sludge.
The application range of this type is for cooling systems of NC, CNC, lathe, machining center, grinding machine, and filtering systems and washing machine. The major raw materials consists of stainless steel, and the mechanical seal is made FKM that endures high temperature and keeps long-life performance.
The using liquids should be clean, non-explosive and low viscosity without solid particles, sludge, and fibres, additionally not affects original elements of pump. If the viscosity and gravity of using liquids is higher than soluble cutting water, the motor power has to be increased according to working conditions.
PUMP
This pump can be installed additional empty chambers when the tank is deeper.
Caution: Because more chambers installing causes low pressure, when the pump is equiped, the separating plate has to be installed between tank outlet area and inlet area to avoid low sucking performance.
MOTOR
The motor is used standard fan cooling system and standard dimension.
Enclosure class : IP54
Insulation class : F
Standard voltage 50Hz : 3? 200/380, 415V
Standard voltage 60Hz : 3? 220/380, 440V
The motors manufactured are high efficiency motors, 750W or higher, according to the Efficiency Standard of Minimum Consumption of Korea.
Other non-standard voltage and premium motors may be customized; however, electrical specifications and appearances may be differed from the drawing.
When using a 3ph motor, a standard starting panel must be connected to the 3ph motor.
Pump type: ACRK
Normal Volume (m3/h): 4
Stage of pump x 10: 100
Impeller stage: 3
